 >>  PRODUCTS  >>  FIREPROOF MASSES AND PASTES  >>  FLAME CABEL I PASTE

FIREPROOF PASTE FOR PROTECTING METAL PIPES

PRODUCT OFFICIAL DOCUMENTS​

PRODUCT TECHNICAL DATA

​

  • European Technical Approval: ETA-16/0732

  • Certificate of Constancy of Performance: 1488-CPR-0581/W

  • Hygienic certificate: BK/B/0264/01/2019

  • European Declaration of Performance: DoP FCPI-004-1-2023-06-02

​

  • Fire resistance class:  up to EI 120

  • Reaction to fire:  B-s2, d0

  • Color: graphite gray

  • Density: 1.42 ± 5% g/cm³

  • Environment class: Z2

  • Storage temperature range:  from + 5°C to + 30°C

  • Shelf life: 10 months

  • The theoretical amount to obtain a 1 mm thick coating: 1.89 kg / m²

  • Packaging: 10 kg bucket, 310 ml cartridge

OTHER DOCUMENTS FOR DOWNLOAD

  • Technical data sheet

  • LEED, BREEAM, AgBB approvals

Examples of technical application of the product:

Technical description:

Flame Cabel I Paste is a one-component, thick, water-based dispersion of synthetic resin and pigments, graphite in color. The paste reacts - it increases its volume under the influence of temperature above 150°C. It is suitable for application with a spatula or brush with stiff bristles. It can be diluted by adding up to 3% water. The coating of Flame Cabel I Paste is rough when dry. Use mechanical instruments for thickness measurement, e.g. calipers. The dried coating of Flame Cabel I Paste may conduct electricity. I Paste can be packed in various containers, from 310 ml cartridges to 10 kg buckets. In order to change the color, Flame Cabel I Paste can be topcoated with decorative water-based paints. Before applying Flame Cabel I Paste, protected surfaces should be dusted and degreased.

Intended use:

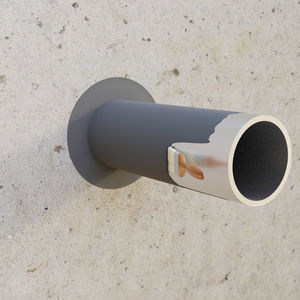

Flame Cabel I Paste fireproof paste is intended for fire insulation and sealing and fire-resitant protection of penetrations through walls and floors of steel, copper and cast iron pipes without insulation or insulated with PE foam (in combination with Multitube fireproof tape). It can also be used to protect penetrations through walls and floors, small diameter plastic pipes, stabilized with glass or aluminum. The coating made of this fireproof mass, under the influence of high temperature, intumesces under fire conditions, creating a foamed, fireproof thermal insulation layer on the protected surface. Penetration seals made of Flame Cabel I Paste fireproof paste are classified in class EI.

Application:

BETON

FLOOR​
​
width from 150 mm
​
​
REINFORCED CONCRETE
CEGŁA

RIGID WALL
​
​
width from 100 mm
​
​
AIR CONCRETE, CONCRETE, BRICK, OTHER PRODUCTS
Ściana sztywna

RIGID WALL
​
​
width from 100 mm
​
​
AIR CONCRETE, CONCRETE, BRICK, OTHER PRODUCTS
Ściana podatna

FLEXIBLE WALL
​
​
width from 100 mm
​
​
PLASTERBOARD
